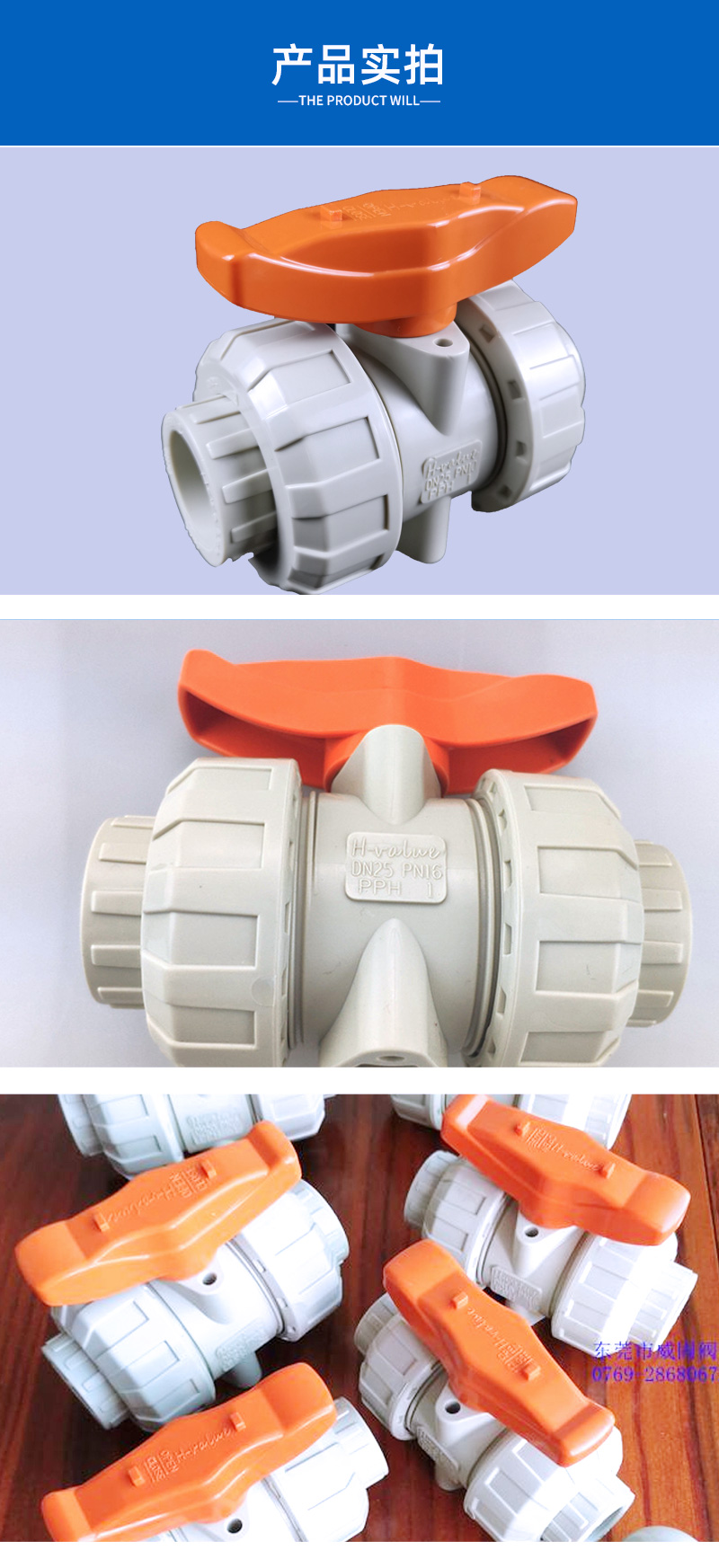

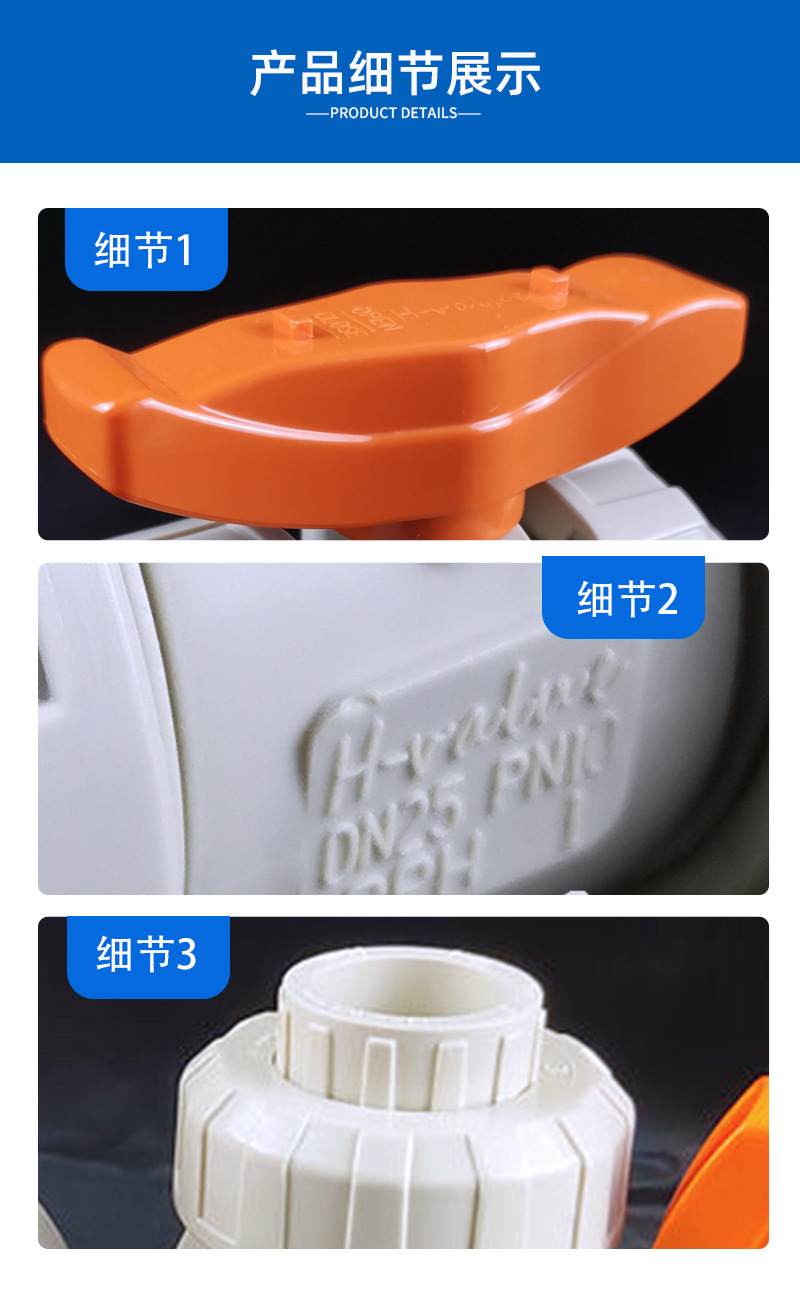

H-value球阀 琚氟PPH管件 H-value管道 PPH管道
材质：PPH/PVDF
富彩vip 标准：DIN
|
Nominal Size |
D |
d |
d1 |
d2 |
H1 |
H2 |
L |
L1 |
L2 |
单 L3 |
位：mm W |
|
|
1/2" |
20mm |
53.98 |
15 |
18.99 |
18.6 |
54.09 |
27.75 |
101.6 |
16 |
58 |
69.6 |
84.99 |
|
3/4" |
25mm |
63 |
20.1 |
23.99 |
23.7 |
58.55 |
31.8 |
104.53 |
18 |
57.67 |
68.53 |
91.22 |
|
1" |
32mm |
71.97 |
25.2 |
31.2 |
31 |
68.5 |
36 |
120.8 |
20 |
68 |
80.8 |
106.29 |
|
1-1/4" |
40mm |
84.58 |
32 |
38.99 |
38.7 |
79.37 |
42.7 |
138.97 |
22 |
78.57 |
94.97 |
116.01 |
|
1-1/2" |
50mm |
97.98 |
40 |
48.99 |
48.6 |
88.03 |
50 |
145.01 |
26 |
83.01 |
93.01 |
128.01 |
|
2" |
63mm |
118.1 |
50 |
61.99 |
61.6 |
105.94 |
60.1 |
160.38 |
30 |
88.68 |
100.38 |
140.01 |
|
2-1/2" |
75mm |
147.54 |
63 |
73.7 |
73.5 |
134.84 |
75.85 |
236.3 |
45.8 |
132.3 |
144.7 |
209.41 |
|
3" |
90mm |
165.4 |
75 |
88.5 |
88.3 |
148.1 |
84.62 |
263.1 |
49.5 |
148.34 |
164.1 |
234.35 |
